SED SGT400
Price Reduced
Price: 3 990 000.00$
EXW Europe

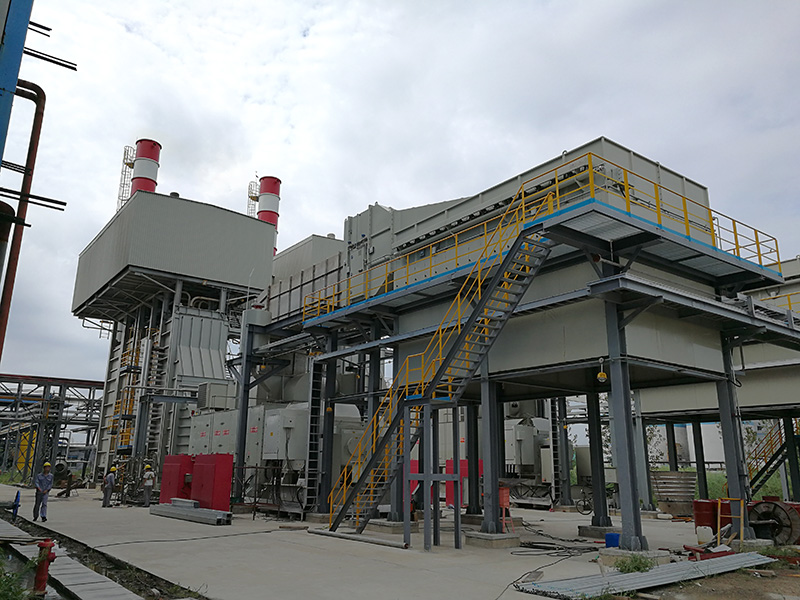

SGT400 Gas turbine
Dual Shaft
Manufactured in 2013
Hour Recorded 12000
Power output 12.9 MW
Frequency 50HZ
Voltage 10.5kv
Scope of Supply:
Generator set, control system, inlet cabinet, output cabinet, PT cabinet
Technical data
Generating power: 12.90MV(e)
Fuel : Natural Gas
Frequency: 50HZ
Power generation efficiency: 34.8%
Heat consumption: 10.355kj/kW-hr (9.815Btu/KW-hr)
Turbine speed: 9,500rpm
Compressor pressure ratio: 16.81
Exhaust flow/temperature 39.4kg/s 555℃ (86.8lb/s.1031)
NOx emission (DLE converted to 15% O2 dry type): <25ppmV
If you are interested in buying this stock offer or you have any questions feel free to contact us.
